Chain Mesh & Security fencing/ Chain Mesh & Cyclone fencing for
sale
1. Chain Link Fence introduction:
Chain link mesh netting is made of woven steel wire, which is one
of the most commonly used and versatile of all the fencing fabrics.
It is normally available in a variety of wire gauges and mesh sizes
to suit individual applications.
All chain link rolls come complete with line wires and with
knuckled edges. Barbed (protruding) edges increase the security of
the fencing and are available to order.
(1). A popular type of the galvanized chain link mesh. The vast
majority in the market today is galvanized wire then weaving
(2). Material: Galvanized iron wire or PVC coated iron wire.
(3). Zinc coating: The electro galvanized is 7-15kg per square
meter and hot dip galvanized is 35-400kg per square meter.
(4). Characteristics: The weaving is simple, artistic and
practical. Chain link fences are easy to work, bright color, easy
to maintain. Chain link netting is the first choose for beautifying
the city environment.
(5). Application: chain link fence is mainly used in the leisure
sports field, park, garden, Greenfield, parking filed,
architecture, waterways, residence safeguard, etc.
(6). Specifications:
Galvanized Chain Link Fence |
mesh (mm) | wire gauge (SWG) | Wire Diameter (mm) | Weight Kg/m2 | Coil Diameter
(cm) |
Natural volume | Fold volume |
200×200 | 8 | 4.06 | 1 | 60 | 35 |
150×150 | 10 | 3.25 | 0.9 | 55 | 32 |
100×100 | 9 | 3.66 | 1.7 | 55 | 35 |
80×80 | 10 | 3.25 | 1.68 | 57 | 38 |
60×60 | 12 | 2.64 | 1.5 | 52 | 34 |
50×50 | 12 | 2.64 | 1.83 | 49 | 33 |
40×40 | 10 | 3.25 | 3.56 | 46 | 32 |
30×30 | 12 | 2.64 | 3.25 | 42 | 34 |
20×20 | 19 | 1.02 | 0.7 | 25 | 34 |
PVC Coated Chain Link Fence |
mesh (mm) | wire gauge (SWG) | Wire Diameter (mm) | Weight Kg/m2 | Coil Diameter
(cm) |
Natural volume | Fold volume |
80×80 | 8 | 3.0/4.06 | 1.72 | 65 | 40 |
60×60 | 9 | 2.6/3.66 | 1.75 | 59 | 38 |
55×55 | 10 | 2.2/3.25 | 1.38 | 54 | 35 |
50×50 | 10 | 2.2/3.25 | 1.67 | 49 | 35 |
45×45 | 8 | 3.0/4.0 | 3.2 | 50 | 35 |
40×40 | 10 | 2.2/3.25 | 2 | 45 | 34 |
35×35 | 12 | 2.0/2.64 | 1.9 | 40 | 30 |
(7). Surface treatment:
Galvanized: Electronic galvanized or hot dipped.
Zinc coat amount can according to customers' requirement.
PVC coated: 0.5mm thickness
PVC coated: 0.5mm thickness
(8). Edge of the chain link fence:
Knuckled-Knuckled, Knuckled-barbed, Barbed-barbed.

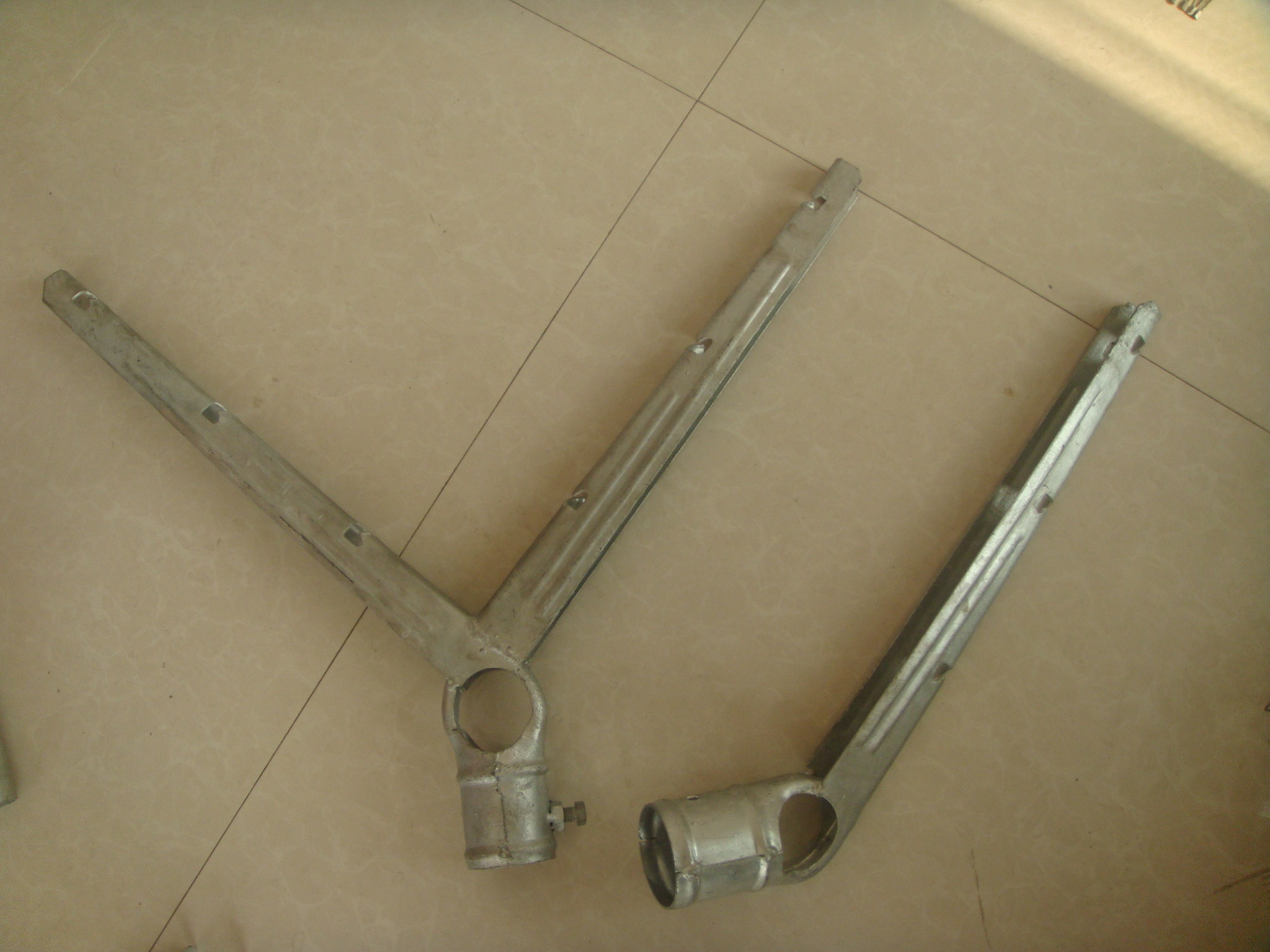

2. Chain Link fence Accessories:

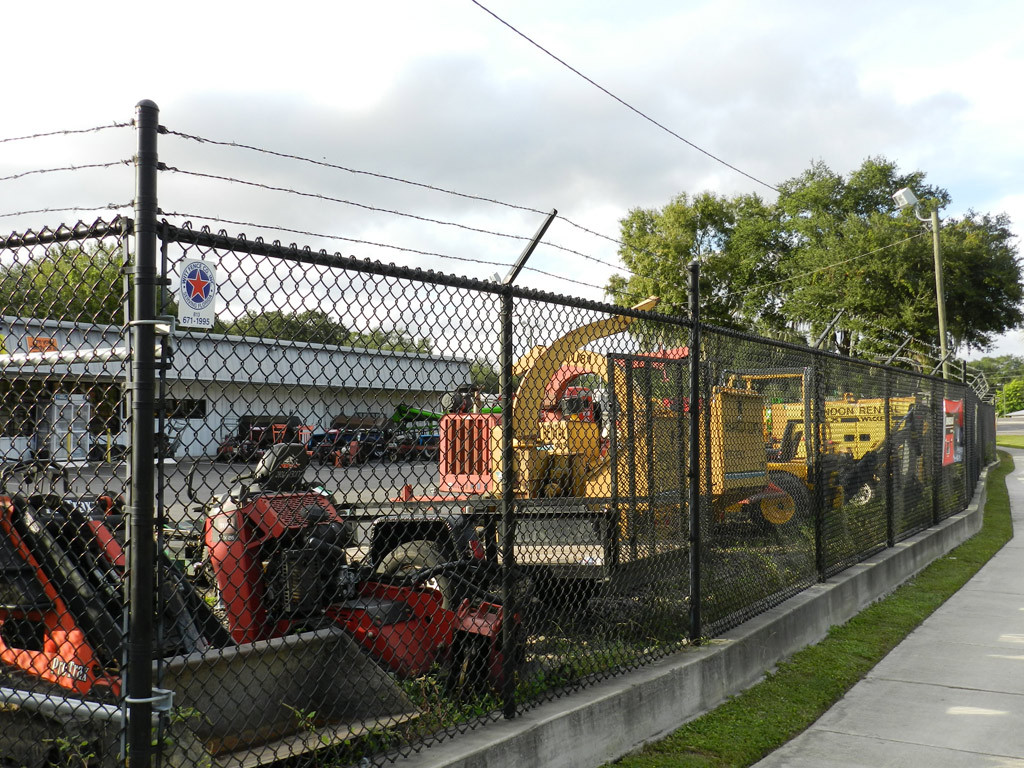

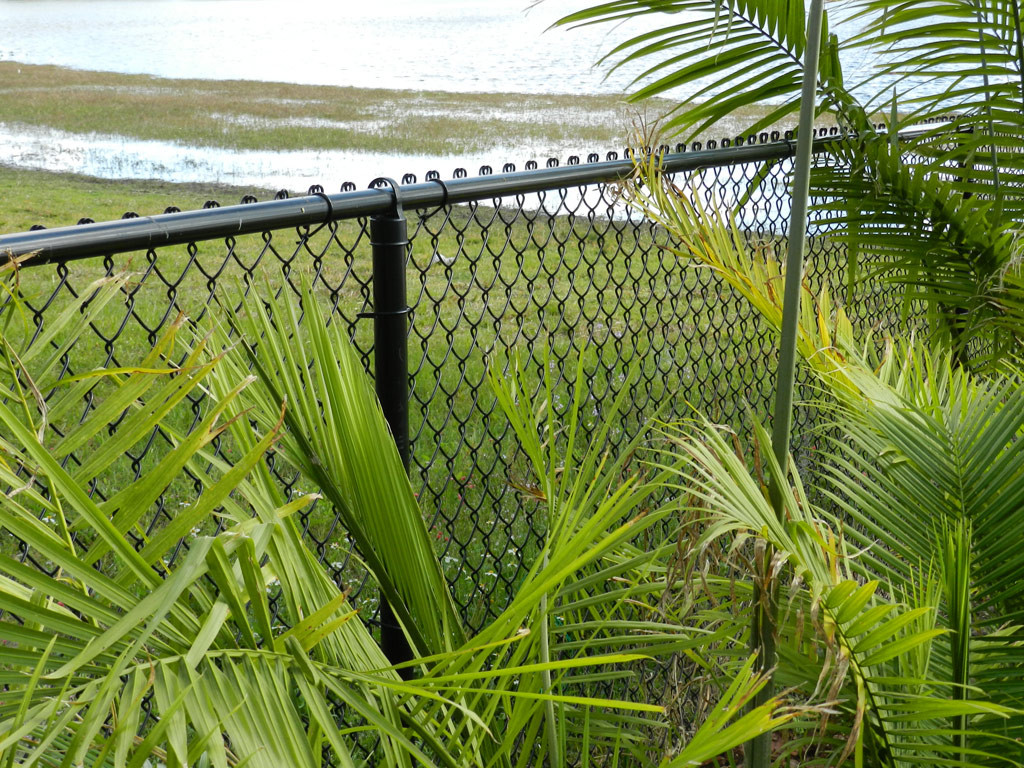

3. Chain Link Fence Installation:
4. Chain Link Fence workshop:
5. Chain Link Fence Single leaf gate of hot dipped galvanized:
6. Chain Link Fence Double gate of hot dipped galvanized:
7. Chain Link Fence Packing and Loading:
There are kinds of packaging. Please choose according to your
needs. 1) Woven bags of the above and bottom; 2) In roll,
waterproof paper inside and weave bag outside; 3) Carton; 4) Wooden
case; 5) Pallet. 6). Customized
