Wire Mesh Fencing Manufacturer
5 Years
| Ask Lasest Price | |
| Brand Name : | LNF-Construction Fencing |
| Model Number : | 4'6'8' Height and 2100mm height etc |
| Certification : | ISO |
| Price : | 8.88$ per liner meter |
| Payment Terms : | TT30% deposit balance 70% at sight of finished products |
| Supply Ability : | 10000 liner meters |
| Delivery Time : | 7 work days |

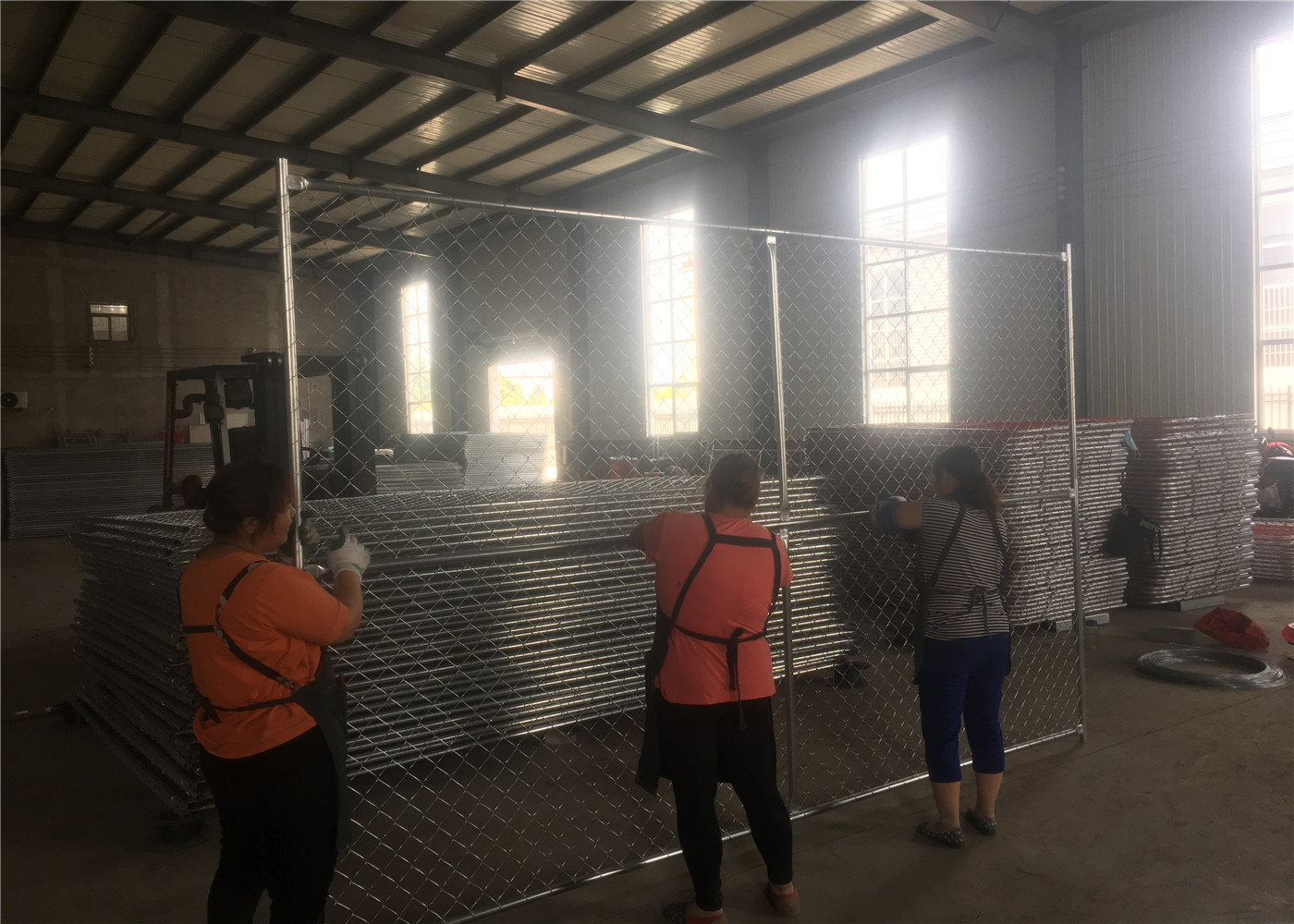

LNF fencing temporary chain link fence height range from 4ft to 8ft and width from 8ft to 14ft as a standard more appealing construction fence panels are 6'x12' and 8'x12'
Height | Width |
6ft (1830mm) | 10ft(3050mm) |
6ft(1830mm) | 12ft(3660mm) |
8ft(2440mm) | 10ft(3050mm) |
6ft(1830mm) | 14ft(4270mm) |
6ft(1830mm) | 8ft (2440mm) |
The frame of tubing chain link fence panels 42mm outer and brace 35mm with a 16ga thickness of wall incorporate with a 2.375 " 60mm x 60mm x 2.00 diameter it is smart design for installation fast.
Outer frame | 1 -5/8” (42mm) x 16 gauge ( 1.29mm wall thickness) |
Brace | 1 -3/8” (35mm) x16 gauge ( 1.29mm wall thickness) |
Brace available CROSS, VERTICAL ONLY, HORIZONTAL ONLY | |
Chain Mesh | 2 -3/8” (60mm x 60mm x 12.5 gauge (2.00mm) |
Steel block middle pipes are punched then insert upright fully welding at all 360° through throw drop testing from 5-meter height no any broken.available 36" and 30" length base as per your requirements
Length | 36 “ (914mm) |
Width | 13-3/4”(350mm) |
Height | 8” (203.2mm) |
Frame | 1 -3/8 “ (35mm) or 1-5/8”(42mm) |
Length | 30”(760mm) |
Width | 18”(460mm) |
Height | 8” (203.2mm) |
Frame | 1 -3/8 “ (35mm) or 1-5/8”(42mm) |
|
|
