Collapsible Metal Security Barrier MIL 4 Defense Hesco Bastion
What is the defense barrier ?
Mesh Gabion Box Explosion-proof Wall , has the ability of resisting explosive shock wave and can limit the damage of explosion to a certain range of wall.
defensive barrier also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.
--- Material have galvanized , galfan coated wire
--- Experienced factory in manufacturing .
--- U.S Military approved quality .
--- Short shipping time.

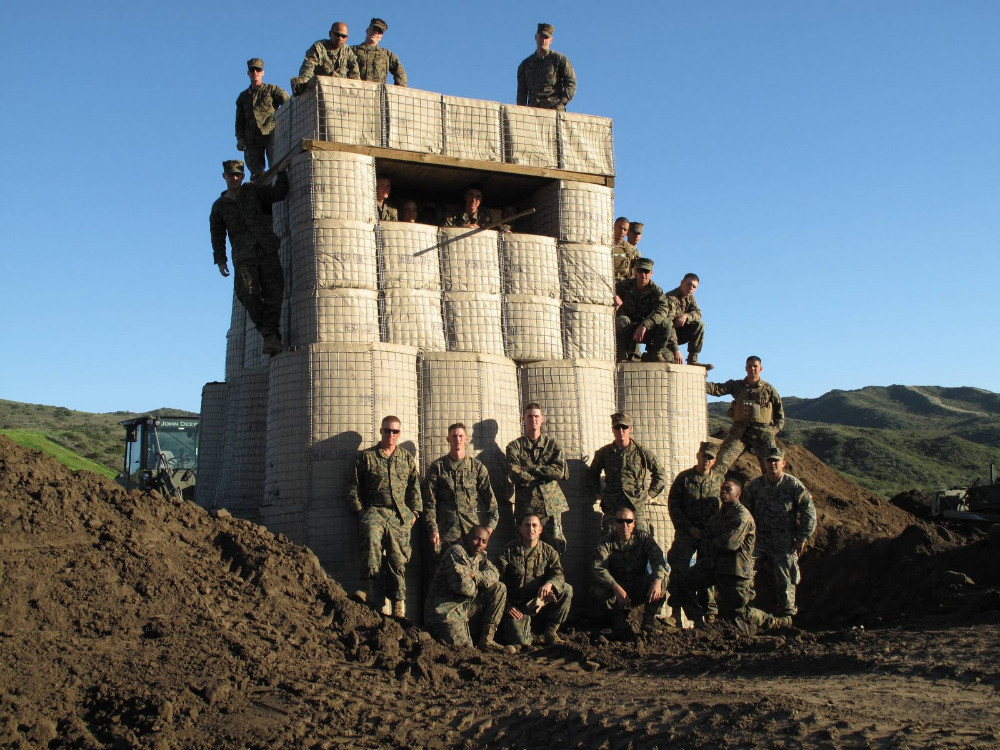

The defense barrier is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries .

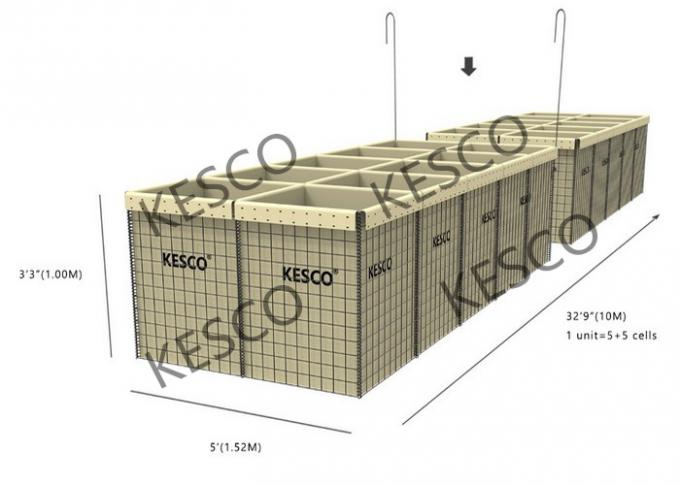

Specification of Mil 4 Unit :
 | Material : All wires conform to BS EN10218-2012, Zinc-Alunminum coating are to BS EN 10244-2:2009 Geotextile: heavy duty geotextile, non-woven,permeable, polypropulene farbric Geotextile color: beige or green color Mesh Hole: 3” X 3” Unit Size : 1.00m x 1.52m x 10m Cells: 1 unit = 5 cells + 5 cells = 10 cells | |||
| Item No. | Height | Width | Length | all dimensions and weight are nominal ,Diagrams and products are for illustrative purpose only. |
| SX4 (Mil 4) | 3’3” (1.00m) | 5’ (1.52m) | 32’9” (10m) | |
A geotextile lined unit for general use as an earth filled barrier .
The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the construction of protective walls and barriers.
HESCO Defensive Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
|
|
