Wire Mesh Fencing Manufacturer
5 Years
| Ask Lasest Price | |
| Brand Name : | LNF ROPE WIRE MESH |
| Model Number : | Stainless Steel |
| Certification : | ISO |
| Price : | 16.78$/M2 |
| Payment Terms : | Western Union, T/T, MoneyGram |
| Supply Ability : | 10000M2/per Week |
| Delivery Time : | 7 work days |
Material of Stainless steel 304,316,306L
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |

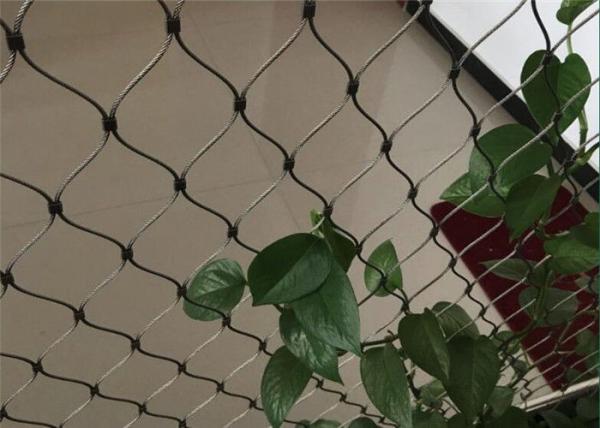

Wire Rope Climber Plant Trellis Mesh by Yuntong can also be
tensioned into three-dimensional forms featuring funnel-like,
cylindrical or spherical. Stainless Steel wire rope plant trellis
is custom manufactured to in widths and lengths to suit your
application . Finished diamond mesh style when it is stretched at
60 degree angle.Mesh sizes range from 20mm to 120mm or bigger with
stainless cable diameters from 1.2mm to 4.0 mm.
Recommended Stainless Steel Wire Rope Mesh Specification For
Climber Plant Trellis Mesh :
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/32" (2.4MM) | 2.5" x 2.5" | 920LBS |
| SS304/316/316L | 3/32" (2.4MM) | 3" x 3" | 920LBS |
| SS304/316/316L | 3/32" (2.4MM) | 4" x 4" | 920LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 4" x 4" | 676 LBS |
Features Of Stainless Steel Plant Supporting Mesh :
1. High strength,strong toughness, free angles curving and fold,
easy for transportation and installment.
2. It can bear heavy snow and glae.
3. Without toxic material, safety, environmental protection.
|
|
