    Stainless Steel Grade Cable Wire Mesh Netting

    Ask Lasest Price
    Brand Name : LNF ROPE WIRE MESH
    Model Number : Stainless Steel
    Certification : ISO
    Price : 16.78$/M2
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 10000M2/per Week
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

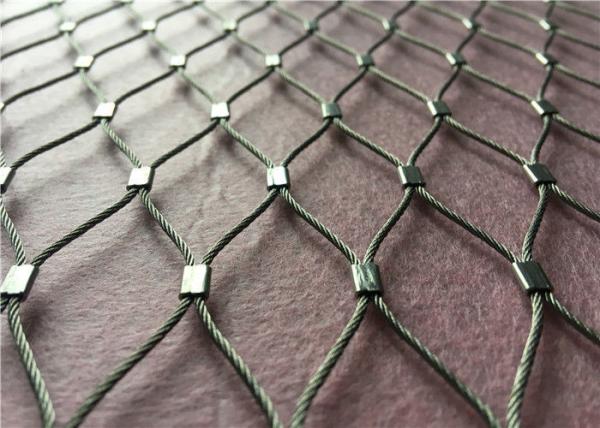

    Stainless Steel Grade Cable Wire Mesh Netting

    Hand Woven Flexible Protection Stainless Steel Grade Cable Wire Mesh Netting


    Wire Rope Diameter
    Flexible HeslyCable ferruled stainless steel cable mesh netting is made from stainless steel wire ropes.Extremely flexible,High strength, Corrosion resistant.Available AISI 316,AISI 304
    Structure1.2 mm1.5 mm2.0 mm3.0mm4.0 mm

    AISI 304 Woven Stainless Steel Wire Mesh Netting | Flexible Wire Rope Mesh


    Structure7 x 77 x 77 x 77 x 197 x 19
    Single Wire TS (N/mm2)17701770177015701570
    Opening Size ( OW X OH )
    The mesh width ,OW ,refers to the distance from the middle of one ferrule to the next ferrule along the cable ,net geometry is optimised, when the resulting diamond can be divided into two equilateral triangles with 60 ° corners.
    Opening SizeRope DiameterMesh Structure
    OW X OH1.2 mm1.5 mm2.0 mm3.0 mm4.0 mm
    20 x 35CD1020AISI 304 Woven Stainless Steel Wire Mesh Netting | Flexible Wire Rope Mesh
    25 x 43CD1025CD1525
    35 x 61CD1035CD1535
    40 x 69CD1040CD1540CD2040
    50 x 87CD1050CD1550CD2050CD3050
    60 x 104CD1060CD1560CD2060CD3060CD4060
    70 x 121CD1070CD1570CD2070CD3070CD4070
    80 x 139CD1080CD1580CD2080CD3080CD4080DecorRope
    100 x 173CD10100CD15100CD20100CD30100CD40100OW : Opening Width
    120 x 242CD10120CD15120CD20120CD30120CD40120OH : Opening Height
    160 x 277CD10160CD15160CD20160CD30160CD40160OG : Opening Guage
    180 x 312CD10180CD15180CD20180CD30180CD40180α : 60° standard (Angle: 30° - 90°)
    200 x 346CD10200CD15200CD20200CD30200CD40200
    Mesh Aperture :
    ● Mesh aperture is the mesh hole size, is the distance from knot center to knot center.
    ● Stainless steel wire mesh is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant.
    ● Hand woven stainless steel netting hole size is diverse
    ● We accept custom mesh size, whether so large, so small, our steel cable mesh can be very suit your design,

    Mesh Orientation & Finished

    Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle


    Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle

    Advantages

    • > 316 "marine grade" stainless steel
    • > Innovative, highly durable product
    • > Black anodised or galvanised finish options
    • > Great prices
    • > Professional, friendly service
    • > Pliable, high strength mesh system
    • > Wide range of sizes available
    • > UV and weather resistant
    • > Fast turnaround
    • > Ideal for many applications

    Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
