Wire Mesh Fencing Manufacturer
5 Years
| Ask Lasest Price | |
| Brand Name : | Razor Welde Wire Mesh |
| Model Number : | 75mmx150mm |
| Certification : | ISO |
| Price : | 16.66$ per liner meter |
| Payment Terms : | TT30% deposit balance 70% at sight of finished products |
| Supply Ability : | 10000 liner meters |
| Delivery Time : | 7 work days |

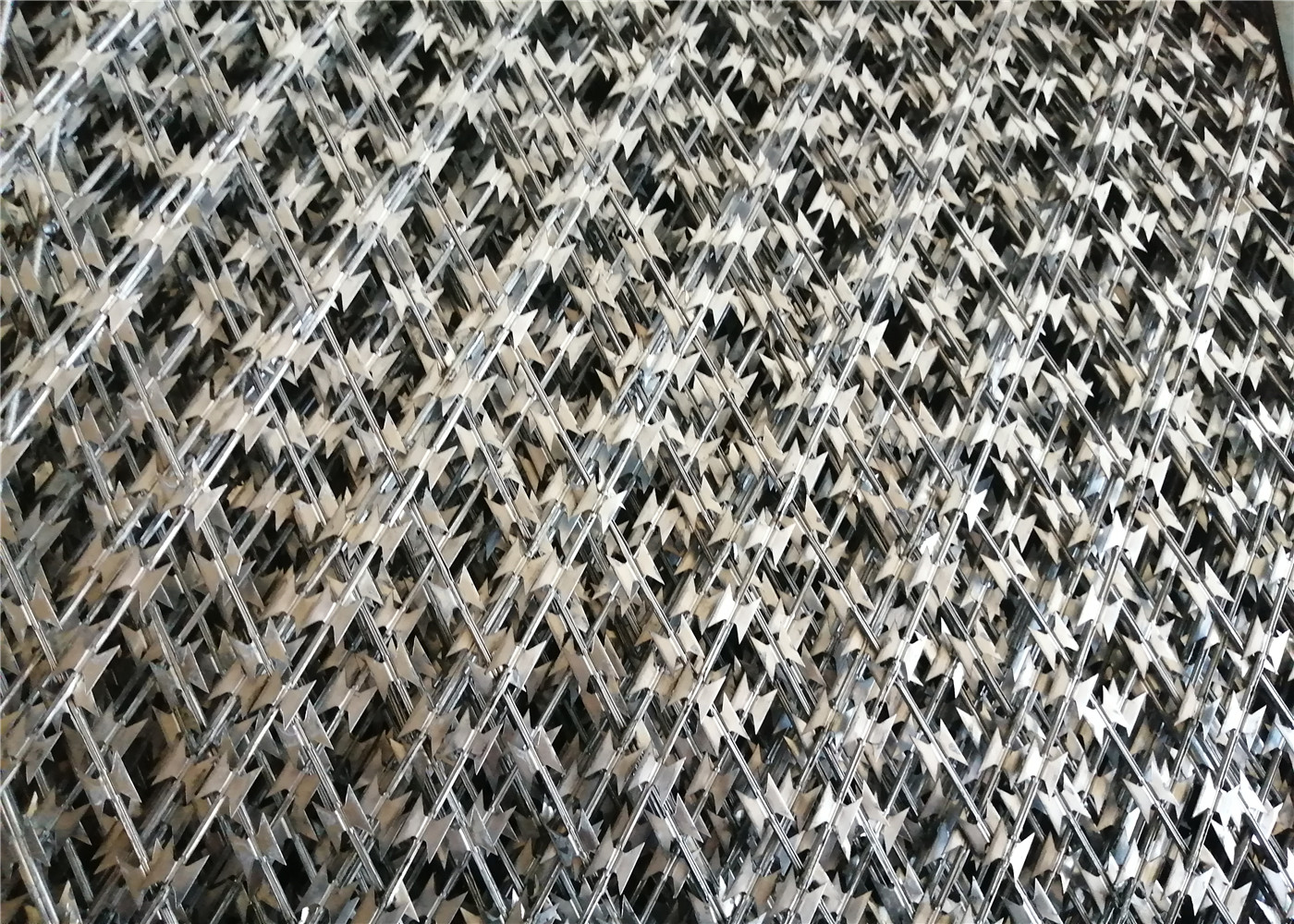

Razor Barbed Wire Mesh is a new kind of security fence which is used widely in many countries.
When you need to get serious about security,Razor Wire is the answer.
It is relatively inexpensive,but viciously effective.Razor Wire around the perimeter is enough to deter any would be vandal,robber or saboteur.Razor Wire is made from a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire.
It's impossible to cut without highly specialized tools,and even then it's a slow,dangerous job.Razor Wire is a long lasting and very effective barrier technology,known and trusted by security professionals.
Razor Blade Specification:
Reference Number | Blade Style | Thick | Wire Dia | Barb Length | Barb Width | Barb spacing |
BTO-12 | 0.5 | 2.5 | 10 | 13 | 26±1 | |
BTO-18 | 0.5 | 2.5 | 15 | 15 | 33±1 | |
BTO-22 | 0.5 | 2.5 | 22 | 15 | 34±1 | |
CBT-65 | 0.6 | 2.5 | 65 | 21 | 100±2 |
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special
specifications available on request.
Barbed Tape Wire Specification:
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-10.15.22 | Cross type |
600mm | 86 | 14M | BTO-10.15.22 | Cross type |
700mm | 72 | 12M | BTO-10.15.22 | Cross type |
800mm | 64 | 10M | BTO-10.15.22 | Cross type |
960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Notes:
Standard products are shown in the tables above, special
specifications available on request.
Standard materials are either galvanized or stainless steel.
|
|
